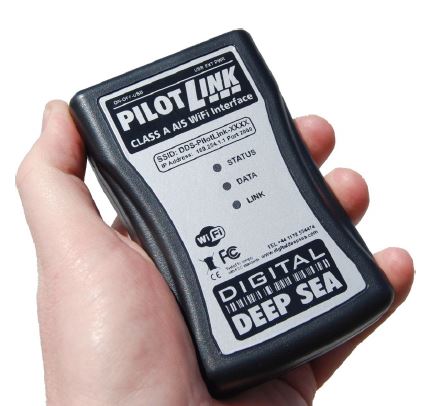

A no frills, low cost WIFI pilot plug to connect the AIS Class A Transponder plug to the seaPro pilot PC. The unit sets up its own local WIFI area network.

Connects to the pilot plug socket via a 1m cable and is powered by a standard PP3 battery or via a USB connector.

Specification:

Note: The  PilotLink  doesn't automaticly detects faulty pilot socket connections.

• Wireless Interface for Class A AIS Transponders
• Reads GPS and AIS data directly from the transponders Pilot Plug
• Supports bi-directional communication for configuring the transponder
• Uses standard NMEA data for maximum compatibility with software applications
• Creates a wireless access point with a typical range of 30m
• Transmits data via TCP/UDP link
• TCP allows single device connection while UDP allows multiple devices to receive the data
• Fully compatible with many popular Apps and software programs including seaPro pilot
• Rugged handheld design can be fitted with optional rubber jacket
• Powered from internal 9v PP3 battery or optional external USB power source
