Saab R5 Solid AIS Transponder


Price List

Buy on line

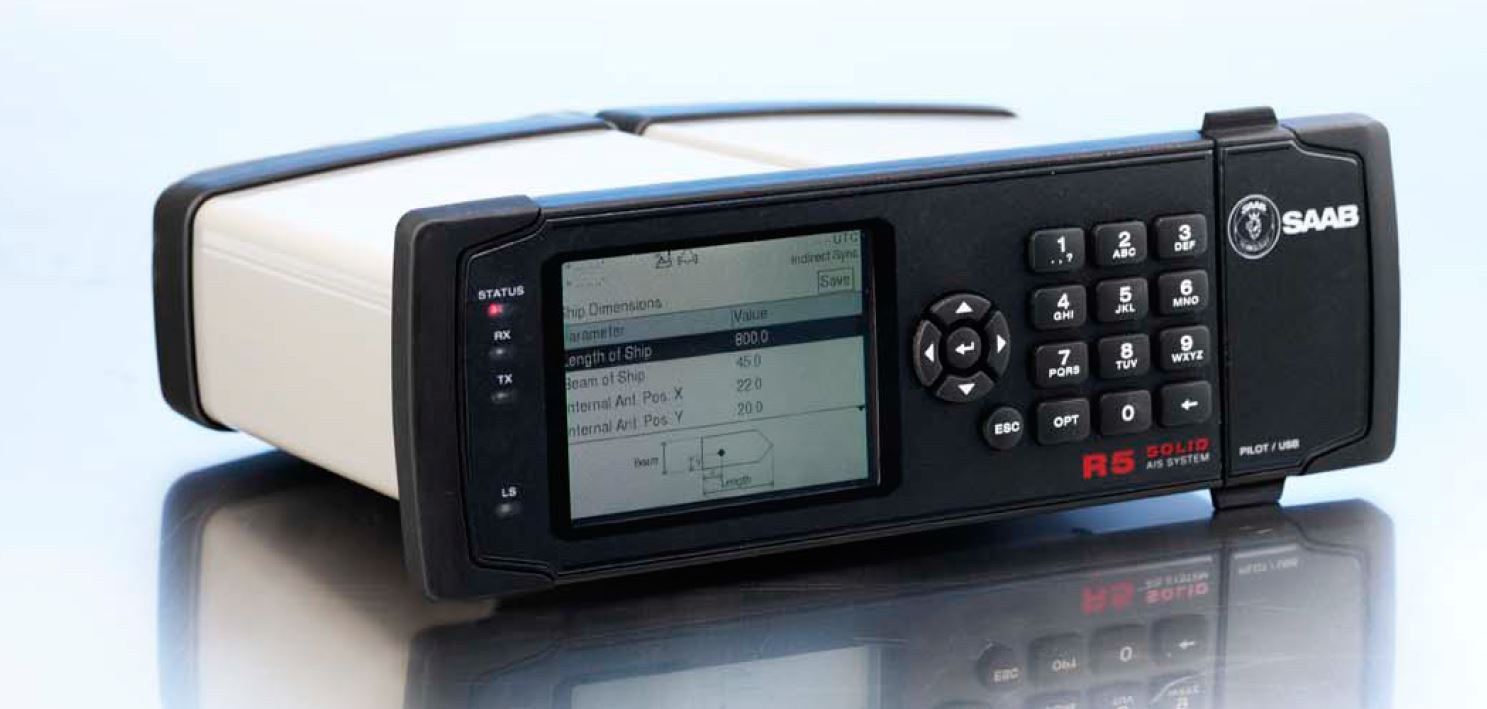

The SAAB R5 SOLID AIS is Saab's fifth generation transponder system, building on the success of the R4 AIS system, in operation on some 20,000 ships world-wide. The R5 system features cutting edge digital
radio technology, resulting from over five years of research on software defined radios. Sharing radio technology with military grade systems, the R5 technology is a big leap forward into the future of AIS radios. The highly versatile R5 platform will continue to evolve as new requirements are introduced,
and will stay at the forefront of AIS technology for many years to come. The SOLID version of the R5 technology provides the user with a flexible, future proof product. It is easy to install and operate and
has a variety of interfaces for connection to other systems.

Ships equipped with an AIS transponder can receive transmitted messages from other ships within VHF range, and plot the position of the ships with its speed, name, call sign, heading, course over ground etc. on the AIS display and/or external plotting aids. This means that every ship within VHF radio coverage may be automatically plotted on the bridge display systems.

Main features

• Quick installation with single box solution
• 12 – 24 VDC power input
• Weather proof design
• Intuitive graphical user interface
• Integrated Pilot plug
• Colour display
• Support for USB peripherals
• RS-232 and RS-422 interfaces
• Light sensor for automatic dimming
• Compact design
• SART alarm
• SART test support
• Support for Inland AIS
• SRM and Binary Text messaging
• Quick SW upgrade from USB memory
• VHF communication test function
• Designed for ITU-R M.1371-5
• Gimbal or flush mounting


Technical Specifications

PHYSICAL
Transponder Size W x H x D: 237x79x170 mm
Weight: 2.20 kg

GPS RECEIVER (AIS INTERNAL)
50 channel
Frequency: L1 (1575.42 MHz)
Update rate: 1 Hz
Antenna feed: 5 V DC
Position accuracy (SA off):
Position <2.0 m DGPS (CEP)
Position <2.5 m GPS (CEP)
Sensitivity: Tracking -162 dBm, Cold Start -148 dBm

ENVIRONMENTAL DATA
Designed for exposed environment (IEC 60945)
Operating temperature: -15 °C to 55 °C

POWER INPUT 12/24 VDC
POWER CONSUMPTION Transponder 20 W (60 W peak)

ELECTRICAL INTERFACES
Back: Front:
5 RS-422 I/O Integrated RS-422 pilot plug
1 RS-232 I/O USB 1.1
1 Digital In (Blue sign)
Alarm Relay

VHF TRANSCEIVER
SDR Transceiver
Frequency 156-163 MHz
Output power 1/12.5 W (±1.5 dB)
Sensitivity < -111 dBm



Download PDF brochure >>> (312KBytes)

Aviation version R4a also avilable
Download PDF Brochure >>
