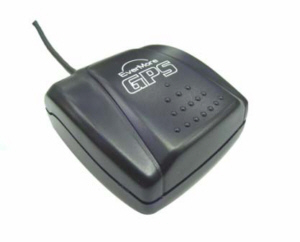

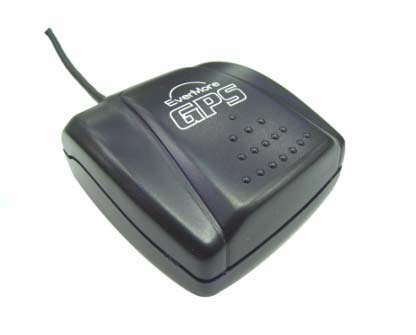

GPS GM-R900 Receiver

Low-cost high performance GPS set with a USB connection


GM-R900 - this GPS has been designed specificaly for laptops and PC's, its both compact and has outstanding performance for accuracy and sensitivity. Featuring a simple USB conection to the PC its offers fantastic value for well under £100.

The USB connection of the GM-900 means no addtional USB to serial converter, and no need for additional power connections as power comes direcly from the USB connection.

This new generation of GPS includes the latest SiRFstar III technology for increased performance with 20 channel parallel acquisition. A technology that delivers improved satellite acquisition giving faster initial position and a built in high-sensitivity antenna for the best reception and tracking.

Please note:
The GM-R900 GPS does not have any user display (LCD) and must be used with a laptop and suitable software (seaPro).
If a GPS position is vital for safety, then a hand held GPS with its own display should also be carried in case of PC failure.



The GM-R900 maybe small, but it contains a high performance 20 channel GPS receiver that will work through glass, Perspex or plastic enabling it to be placed inside the cabin close to a window or hatch. Even with a restricted view of the sky, this high performance waterproof GPS continues to report accurate positional data.
cart Buy now

Key features
SiRF star III Chipset - 20 channel for high performance satellite reception
Small size - ideal for use with portable navigation systems
Direct USB connection to laptop or PC
Powered directly from the laptop or PC
Built in high-sensitivity antenna for the best reception. (-159dBm)
Compatible with both seaPro and seaPro lite
WASS / EGNOS enabled
Waterproof housing
Simple connection and setup

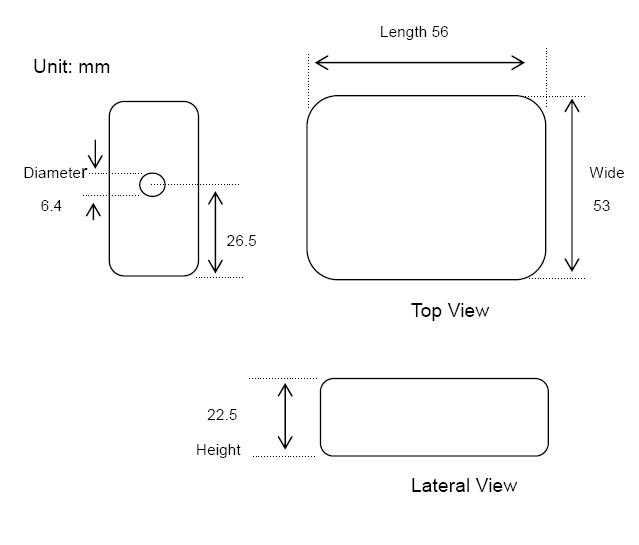

dimenisions

Tech specification:
General

Frequency
CA code
Channels

L1 1575.42MHz
1.0123Mhz chips rate
20

Sensitivity -159dBm type
Accuracy

Position <15m CEP(95% horizontal, SA off (optimum conditions)
Velocity 0.1 meters/second
Time +-100ns synchronized to GPS time
Note: There is improved accuracy with WAAS/ENGOS availability


Datum WGS84
Acquisition rate Hot start
Warm start
Cold start

1 sec average
38 sec average
42 sec average


Dynamic conditions

Altitude
Velocity
Acceleration
Jerk

18,000 meters max
515meters/sec (1000kts) max
4g max
20 meters/sec/sec/sec max


Power 5 v +-0.5Vp-p DC input (fed from USB) at 80mA max


Serial port (virtual com port via USB driver)

NMEA-0183 V2.2 GGA,GSA,GSV,RMC
at 4800 baud, 8 Bits, 1 stop, no parity
Standard interface USB with virtual com port driver


Environmental Operating temperature
Storage temperature
Operating humidity

-40C to +80C
-45 to +85C
5% to 90% non-condensing


Physical Dimensions approx (mm) 56 x 53 x 22.5 (2.20" x 2.08" x 0.88")
Weight 96gms (3.39 oz)


Note: Specification may alter without notice, and presume best conditions for reception etc.



E&OE
